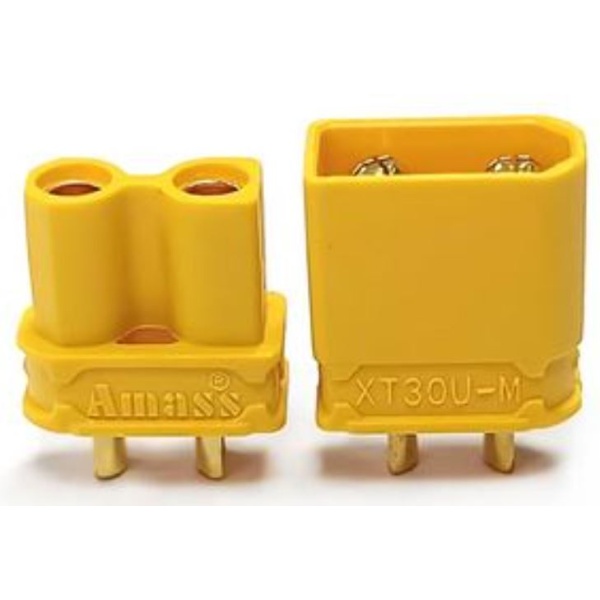

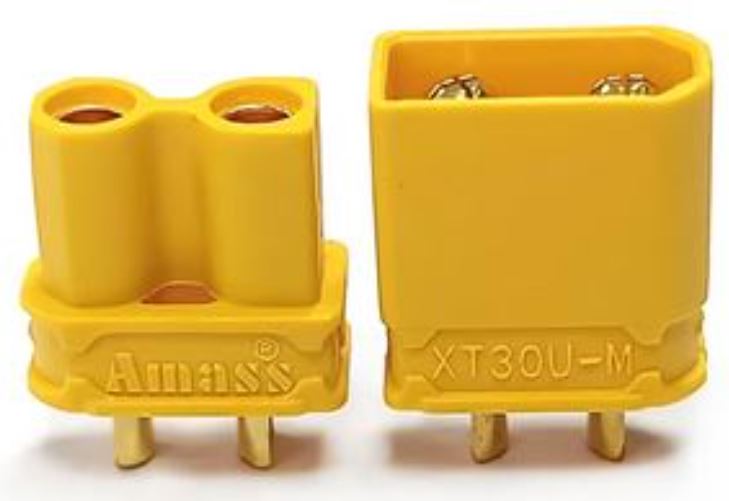

Genuine AMASS XT30
> Longer Lasting
> Will not buckle/ warp under load
> Correct current rated
Made from high-temp Nylon and gold plated spring connectors, both are included in the same injection mold at the time when forming the connector.
Solid Bullet Connectors
Perfect for applications up to and beyond 30A constant
Low Resistance for high current capacity
Ergonomically designed and easy to grip
Protected to avoid shorting and reverse polarity
Superior technology suited to todays high power applications
Designed with convenience and reliability in mind
Easy to un-solder and reuse
Banana Plug : 2mm
Metal Material : Brass gold-plated
Plastic Material : PA66
Flammability Rating : UL94 V0
Contact Resistance : 0.70mO
Rated Voltage : DC 500V
Rated Current : 15A
Instantaneous Current : 30A
Recommend Use : 1000 times
Recommend Cable Spec : 18AWG
Recommend Temperature : -20C ~ 120C
Features:
Gold plated Connections
Long connection contact points for better current flow
Fills a gap for the Mini connectors
Small and light weight
Specs:
Amps: 30A Continuous
Weight: 0.7g male, 0.9g female, 1.7g as a set
Size: Male=12x11x6mm Female=13x11x6mm
Contact current transfer size: 2x6mm
