JP Hobby ER-005 5mm 84� electric main retract for 10mm oleo struts for models up to 6kg (Mounting position Low and jack side rotation)

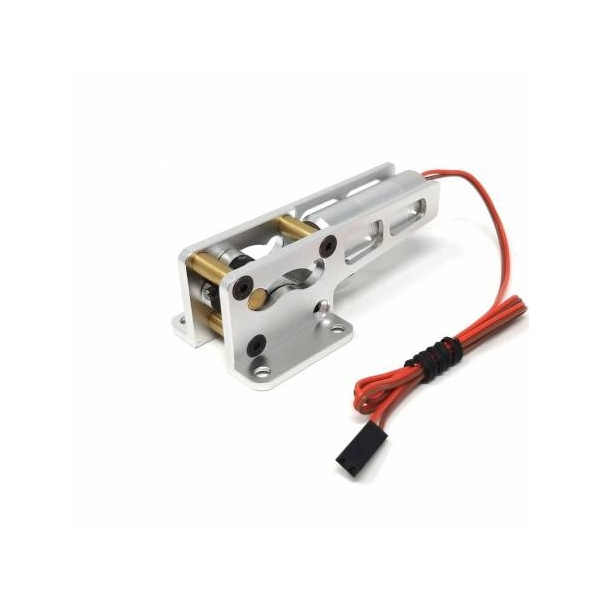

Electric 100% CNC aluminium main retract for planes up to 6kg for JP Hobby oleo struts ER-005 or equivalent with a 6mm diameter in the upper part. 85% inside rotation angle (jack side) and mounting position Low.
Note: These Allow retracts are provided for the oleo strut ER-005 or equivalent with a 6mm diameter in the upper part.
Specifications
- Material: Aluminium
- Struts diameter: 10mm
- Pin Diameter Size: 6mm
- For plane: up to 6 kg (possible 7-8kg)
Technical Specifications
- Retractation angle: 85�
- Retract weight: 63g

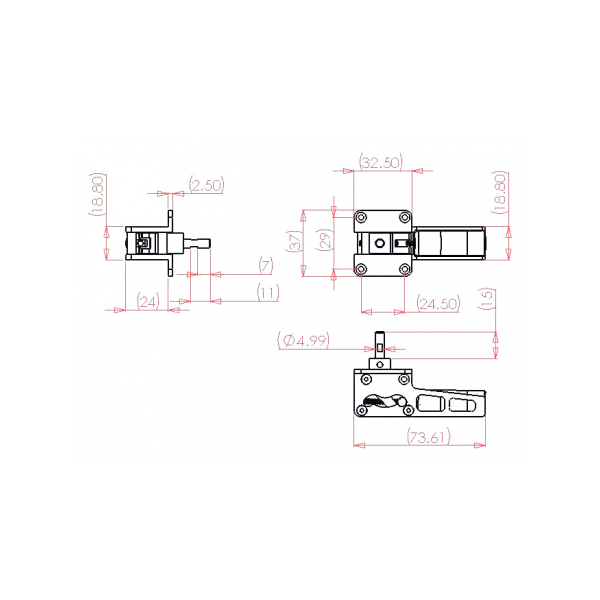

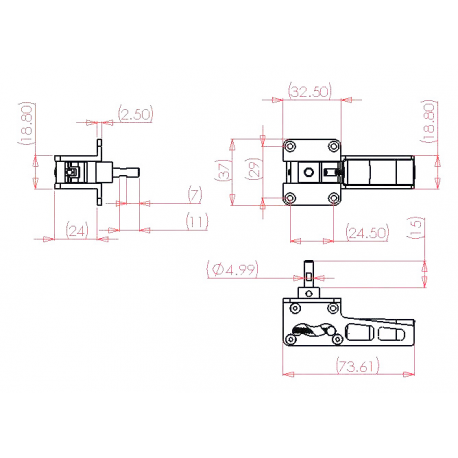

- Retract sizes: 26mm x 73mm x 18mm
- Retract mounting plate sizes: 33mm x 37mm
- Length with motor: 74mm
- Working Voltage: 5-6.4V
- Speed: 5.2 sec (5v) - 4.3 sec (6v)
Contents

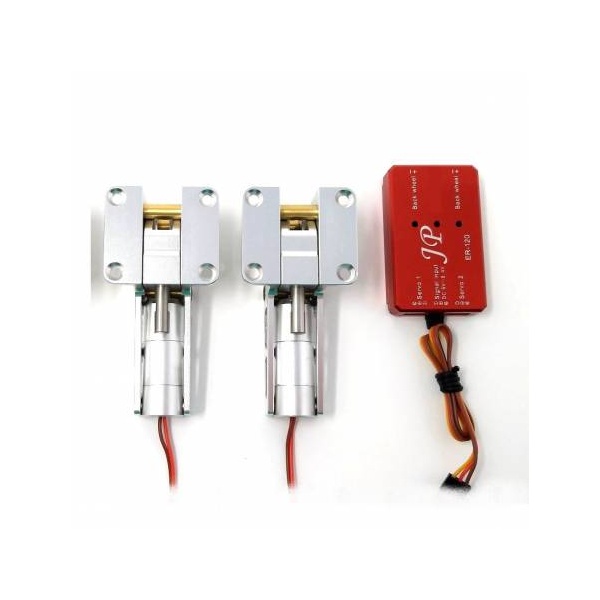

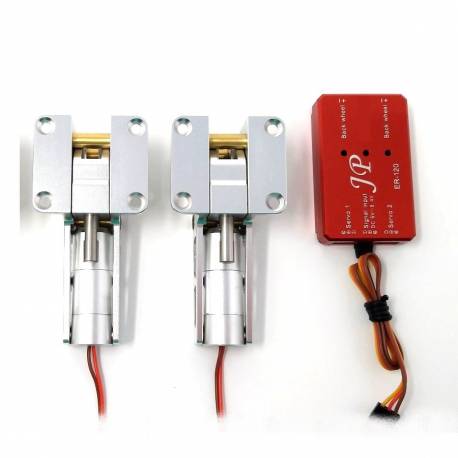

- 2x Main Retract JP Hobby ER-005 6mm unit (6kg/Low/Inside)

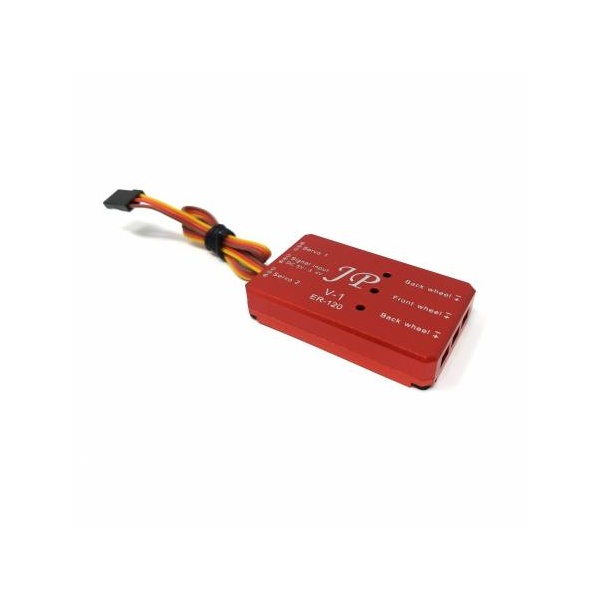

JP Hobby Tricycle Sequencer Retract Box ER-120 V1
This electronic switch is used to control the sequence of electric retract from your transmitter gear channel switch. It is a replacement control box for the JP Hobby electric retracts. Note : Version 2 closes the doors when the gear is down while version 1 keep the doors open.
Connections
Connect the electric retracts mechanism for the main gear to the "back wheel" plug and connect the nose wheel mechanism [NOT SUPPLIED] to the "front wheel" plug
Connect the doors servos to the "Servo 1" and "Servo 2" plugs
Connect the "signal input / DC 6V" wire and plug to your receiver "gear" channel
Specifications
- Input voltage: 5V to 7.2V
- Size: 52 x 32 x 10 mm
- Weight: 22 gr
