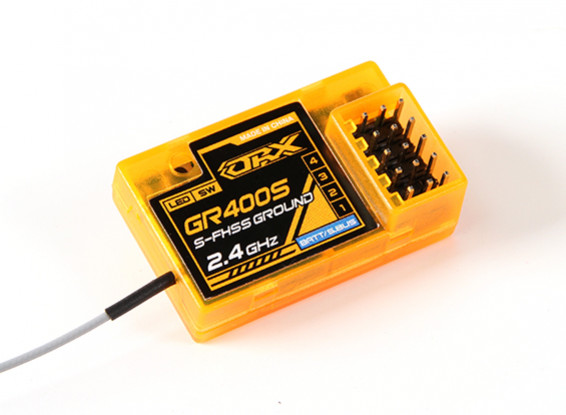

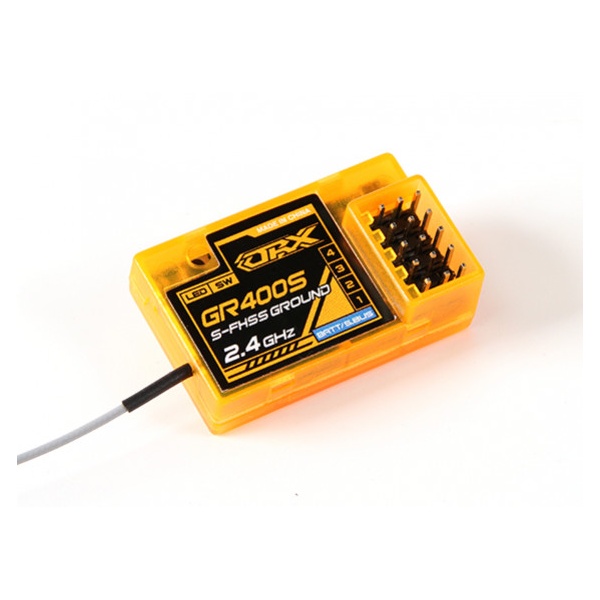

The OrangeRx GR400S ground receiver has all the properties and features of the original FASST compatible receivers in the OrangeRx brand but this one now operates on the later Futaba S-FHSS and FHSS (Frequency Hopping Spread Spectrum) system. This receiver has 2 operating modes, "Normal Mode" (FHSS) accepts any type of servos and peripherals with a 13.6ms frame rate or higher. "High Speed" mode (S-FHSS) only accepts digital servos and peripherals with a 6.8ms frame rate. These modes are auto detected by the receiver during the binding process.
The S.Bus functionality is an excellent feature which reduces the amount of leads and wiring when using multiple servos.
Compatible with the following Futaba 2.4Ghz ground systems:
FHSS only: 3PL
FHSS and S-FHSS: 3PRKA, 4PLS, 4PX, 4GRS
Features:
Lightweight (8g)
Compatible with FHSS and S-FHSS 2.4Ghz ground systems
4 channels
2 Output modes, normal and high speed (high speed S-FHSS only)
Supports SBus
Compact design (36.6 x 23.2 x 8.5mm)
Failsafe and battery failsafe
Extremely low latency
Fast frame rates
Hops from frequency to frequency in a pseudorandom sequence
Advanced algorithms create a secure frequency
