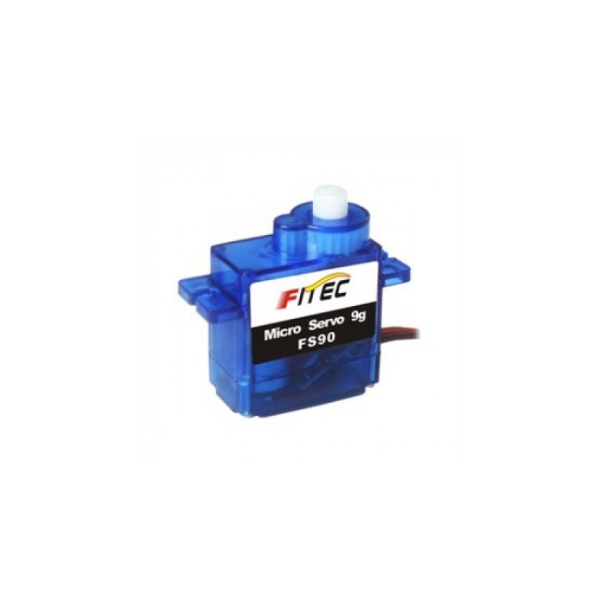

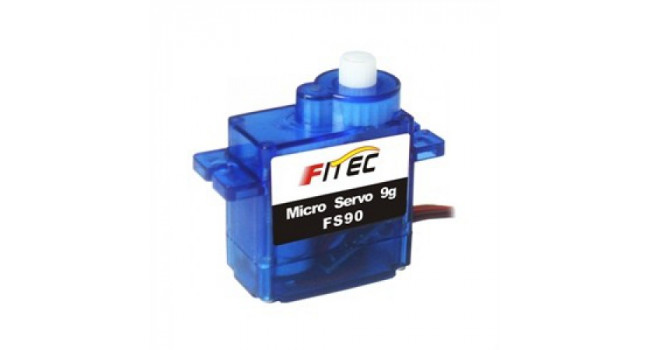

Fitec FS90 9g Servo

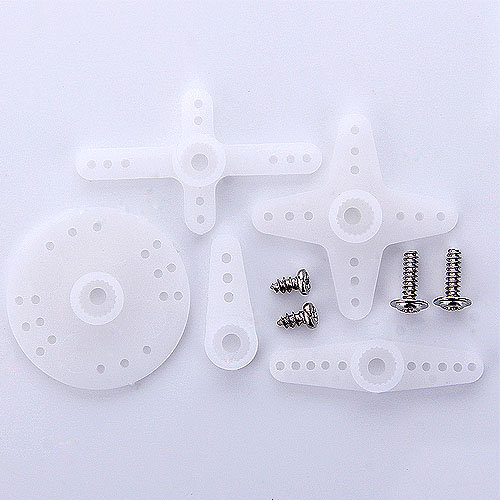

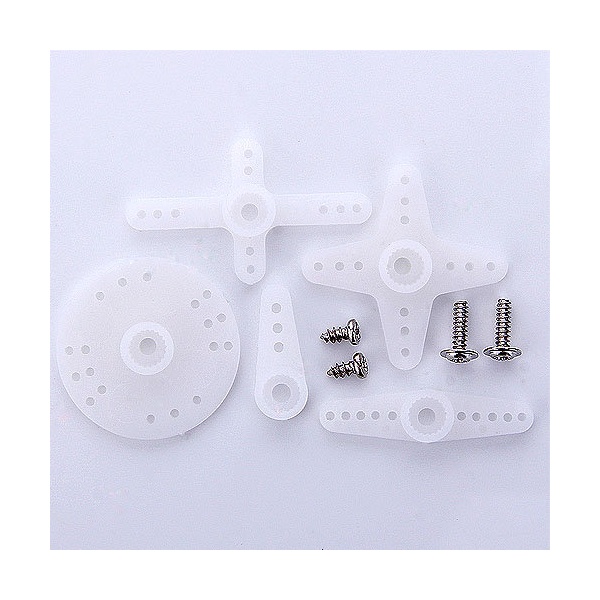

The FS90 analog servo from Fitec is a great general-purpose micro servo at a great price. Servo horns and associated hardware are included. This servo can work with both 5 V and 3.3 V servo signals.

Key specs at 6 V: 0.10 sec/60deg, 21 oz-in (1.5 kg-cm), 9.0 g.

Size: 23.2x12.5x22 mm
Weight: 9 g
General specifications
Digital: N
No-load current @ 6V:200 mA
Stall current @ 6V: 600 mA1
Speed @ 6V: 0.10 sec/60deg
Stall torque @ 6V: 1.5 kg/m
Speed @ 4.8V: 0.12 sec/60deg
Stall torque @ 4.8V: 1.3 kg/cm
Hardware included: Y
Lead length: 8in
