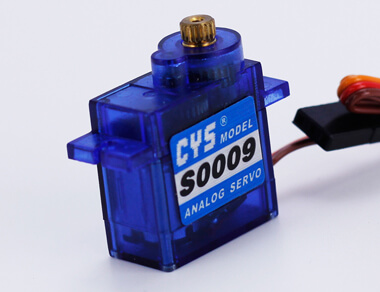

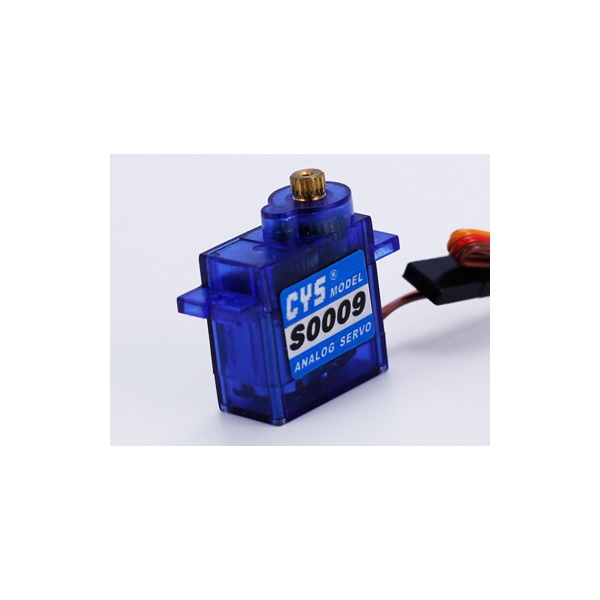

Item NO.: CYS-S0009A 9g servo motor
Description : 9g analog metal gear servo 180deg / 360deg rotation servo
Torque : 1.2Kg.cm to 1.5Kg.cm
Speed : 0.12sec to 0.10sec/60 deg
Voltage : 4.8 Volts to 6.0Volts
Weight :9 plus/minus 1g
Specifications:
Type Analog
Weight 10g
Size 22.3 x 11.8 x 26.3mm
Control System (+)Pulse Width Control 1500 micro sec Neutral
Operating Voltage 4.8 to 6.0Volts
Operating Temperature Range -10 to 50 deg Celcius
Operating Speed (4.8V) 0.12sec/60deg at no load
Operating Speed (6.0V) 0.10sec/60deg at no load
Stall Torque (4.8V) 1.2kg.cm
Stall Torque (6.0V) 1.5kg.cm
Operating Angle 45deg.one side pulse traveling 500 micro sec
Direction Anticlockwise/Pulse Traveling 1000 to 2000 micro sec
Current Drain (4.8V) 10mA/idle and 100mA no load operating
Current Drain (6.0V) 10mA/idle and 120mA no load operating
Stall Current 0.9A/1A
Dead Band Width 4 micro sec
Motor Type Iron core
Horn gear spline 21T
Gear Type Metal
Connector Wire Length 180mm
Wire info Brown/Black = Negative
Red = Positive
Orange/White = Signal
