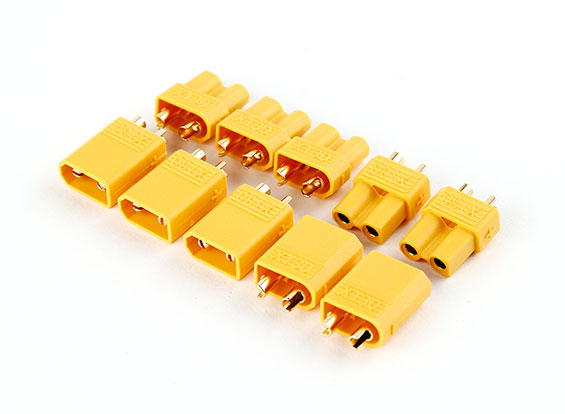

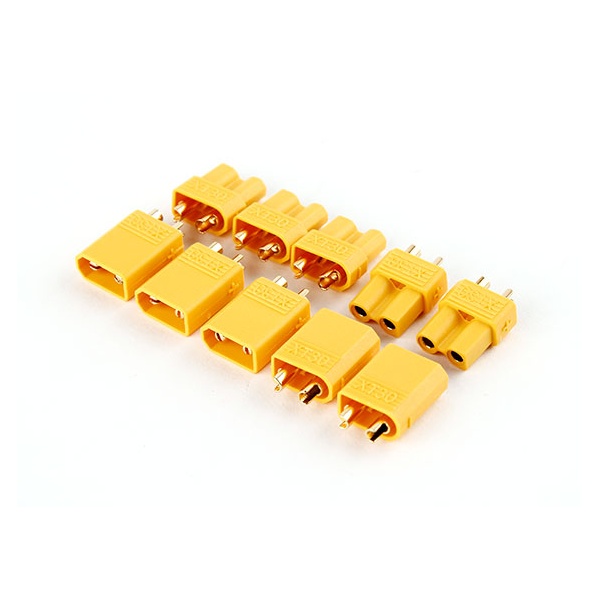

XT30 is the new connector on the block and it is perfect for Mini RC use! Forget about mini JST or Mini T-connectors or even bulky XT60 for smaller applications, we have designed the XT30 to meet the needs of the mini revolution. From 250 class Quadcopters to foamy flyers this is the new standard for you!
Made from high-temp Nylon and gold plated spring connectors, both are included in the same injection mold at the time when forming the connector. The XT30 ensures a solid high-amp connection, perfect for applications up to and beyond 35A constant.
XT30, Designed by hexTronik to be more reliable and a better quality connection than Mini Deans T-Connectors and Mini JST for the given size and weight.
There is no patent on the XT30 connector, we hope this product is sold everywhere in the world and dominates the market, reducing customer dependency on the over-priced and underperforming alternatives for this amp class.
Features:
Gold plated Connections
Long connection contact points for better current flow
Fills a gap for the Mini connectors
Small and light weight
Specs:
Amps: 30A Continuous
Weight: 0.7g male, 0.9g female, 1.7g as a set
Size: Male=12x11x6mm Female=13x11x6mm
Contact current transfer size: 2x6mm
