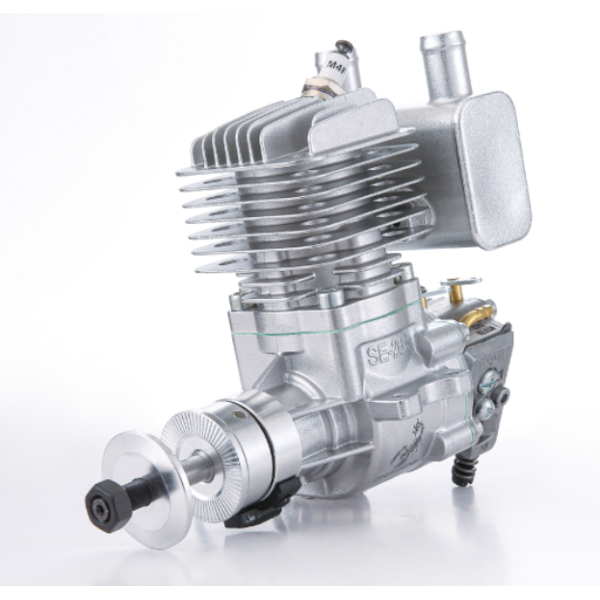

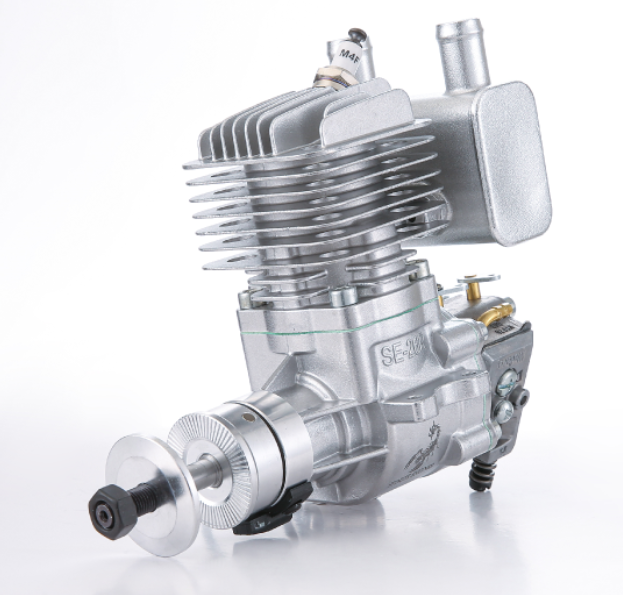

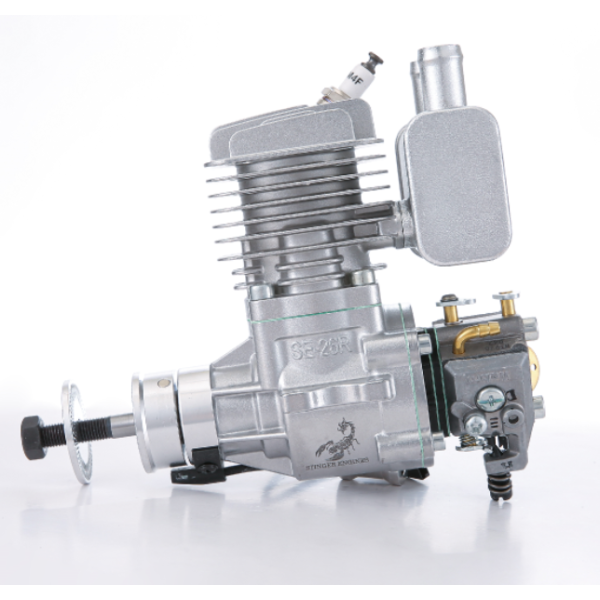

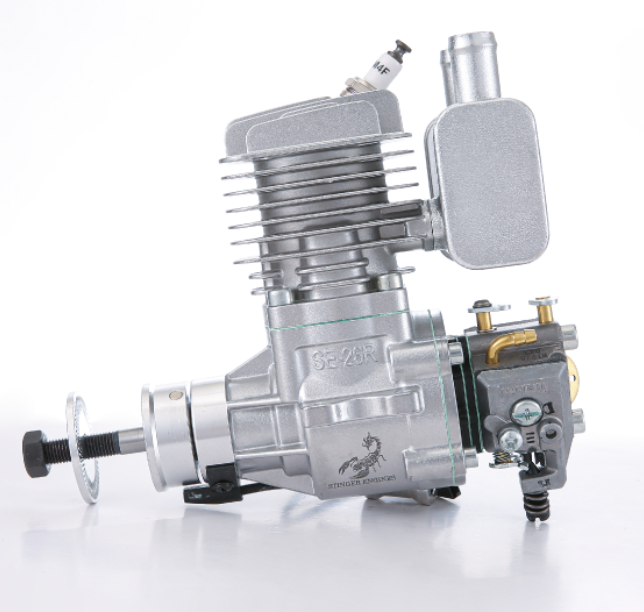

RCGF Stinger 26cc RE
Powerful and stable!
NEW Design, More powerful, Stronger material , More precision , More shiny .
Latest Design & Strong Power
The NEW RCGF Stinger 26cc RE is the latest design engine. Better cooling performance, Strong Power give you unprecedented fly experience.
Parameter
Type: 2 cycle piston valve type gasoline engine for airplane
Displacement (cc): 26cc (1.59 cu in)
Bore x Stroke (mm): 1.3 in (34mm)*1.1 in (28mm)
Recommended props:16X8,16X10,17X8,18X8,18X10
Maximum Output: 3.1 hp @ 2.28kw
Power supply: 7V-14V
Carburetor : Walbro
Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)
SPARK PLUG: CM6 (M14 X1,L-36mm)
Requires: Gasoline, 2-cycle oil, ignition battery & propeller
speed rang : 1800-9800rpm
Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 (recommended : 30:1)
Lubrication Oil : High quality fully synthetic 2 cylinder oil such as Motul 800 2T 100% synthetic racing motro oil , Red line two-stroke racing motor oil , Stihl Ultra high performance 2 cycle fully synthetic engine oil etc .
Break in Propeller : JXF 18*8 (Standard Two leafs prop)
Cooling System : Air Cooled
RCGF Stinger Engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.
Weight:
Engine: 1.69lb (766 g)
Muffler: 2.5 oz (70 g)
Ignition Module: 4.6 oz (130 g)
Total: Weight: 2.42 lb (1096 g)
Technical Data:
Ignition Battery: 7.4V-14VNiCd or NiMH, 7.4V LiFe or 2S LiPo pack
Gasoline/Oil Mix: 30:1
Replacement Spark Plug: CM6 14mm
Idle Speed: 1800 rpm/min
