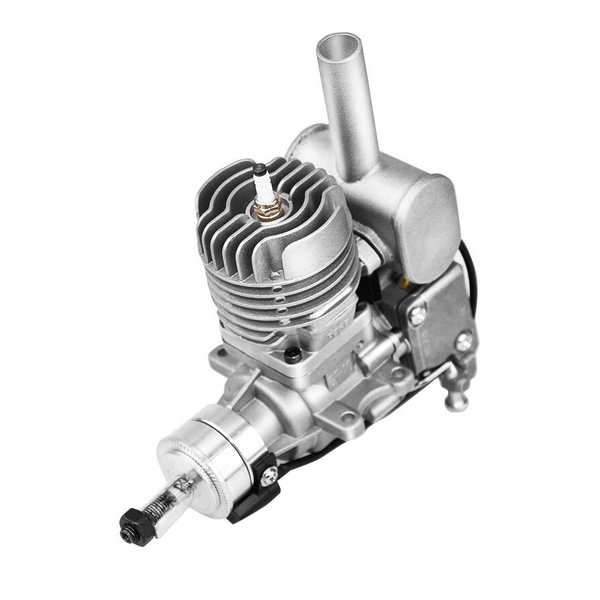

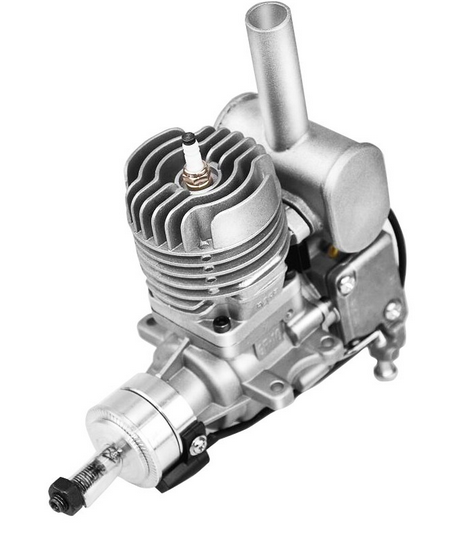

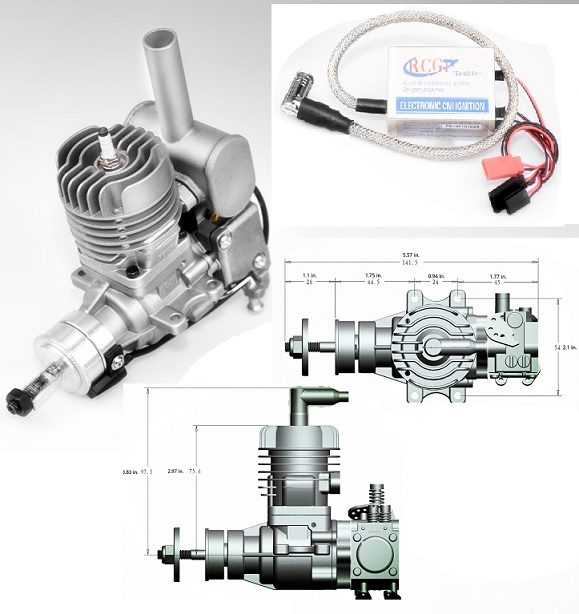

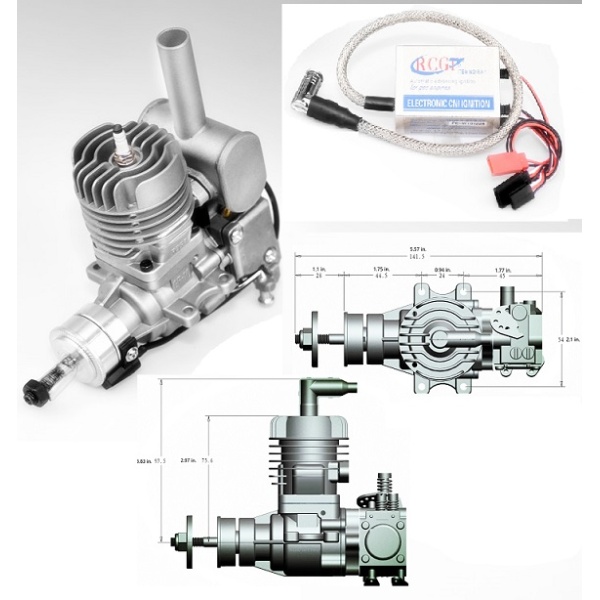

RCGF 10cc Rear Exhaust - Gasoline engine
Product Description
Specifications:
Type : 2 cycle piston valve type gasoline engine for airplane
Displacement (cc) : 10cc (0.61 cu in)
Bore x Stroke (mm): 1.08 in (27.6mm)*0.67 in (17mm)
Carburetor : RCGF
Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)
Power supply: 4.8-8.4V
Maximum Output : 1.9 hp/1.4KW
Requires: Gasoline, 2-cycle oil, ignition battery & propeller
speed rang : 1800-12000rpm
Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 (recommended : 30:1)
(90% high octane unleaded gasoline, Import gas into carbon fiber installations valves)
Lubrication Oil : 2 cycle engine oil
Propeller : 13*7 9800 rpm; 14*6 9000rpm (Standard Two leafs prop)
recommended props :13 x 6, 14 x6,13X8,13X7.
Cooling System : Air Cooled
RCGF engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, Stand off ,throttle arm extension & manual.
Weight :
Engine: 1.03 lb (468 g)
Muffler: 1.4 oz (40g)
Ignition Module: 4.1 oz (115 g)
Total: Weight: 1.37 lb (623 g)
Technical Data:
Ignition Battery: 4.8-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack
Gasoline/Oil Mix: 30:1
Replacement Spark Plug: 1/4-32 SIZE or equivalent
Idle Speed: 1800 rpm/min
Static Thrust:
8.38 lb (3.8 kg) @ 328 ft (100 m) altitude
7.94 lb (3.6 kg) @ 5,900 ft (1800 m) altitude
