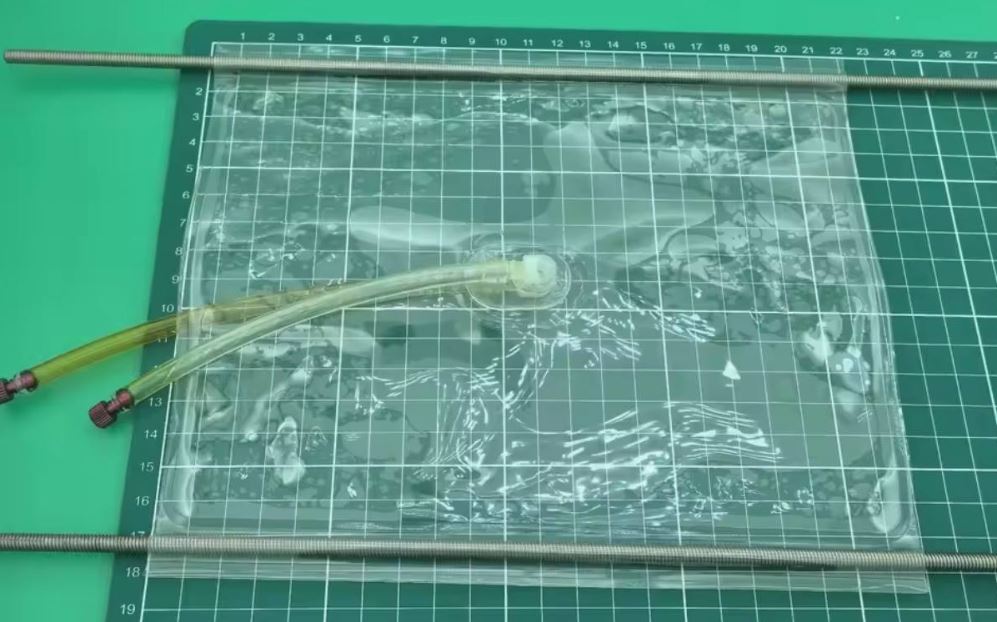

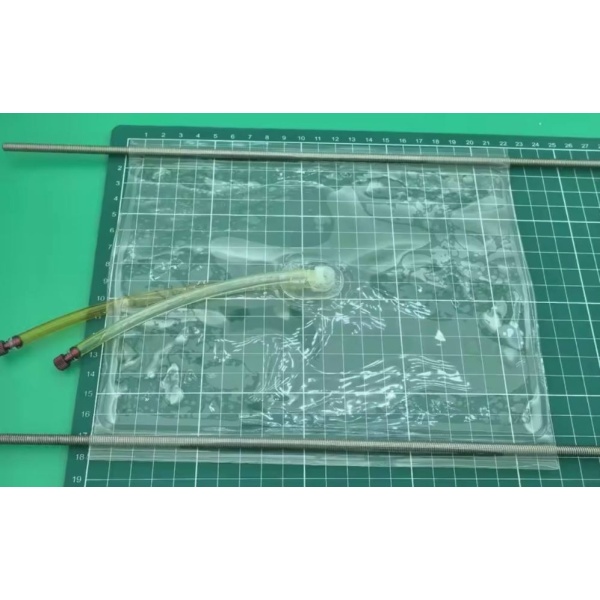

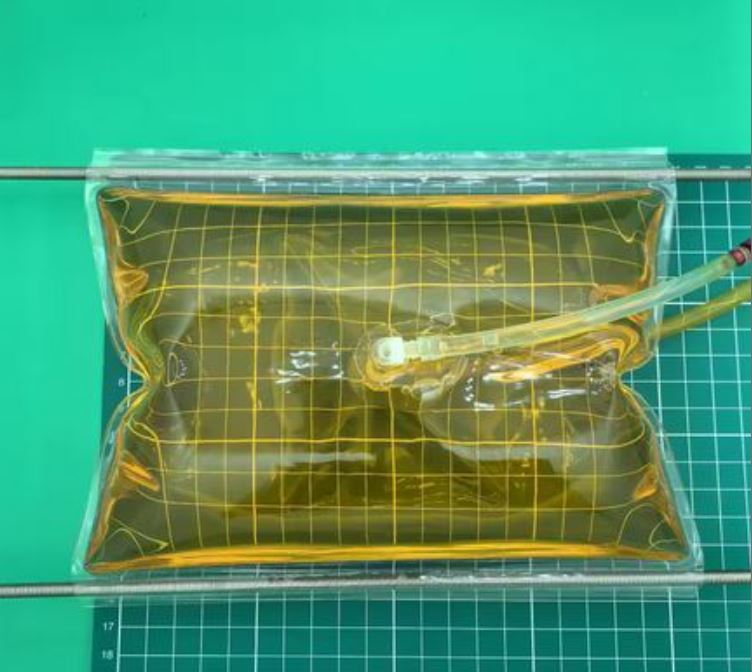

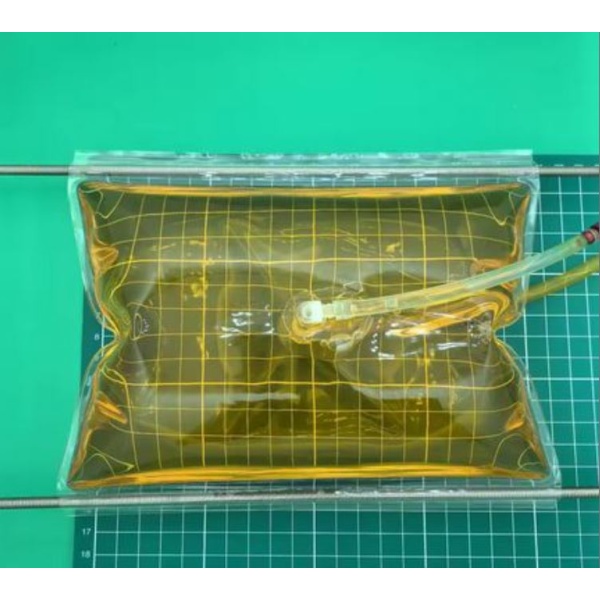

FUEL BAG 1L

Ideal for applications that have limited space
NO UAT REQUIRED
SUITABLE FOR KERO/ PETROL/ DIESEL/ NITRO FUELS AND SMOKE FLUIDS

specs:
SIZE: 210*150mm
Volume:1L
Weight:25G

Fit for fuel line 6x4mm (then reducer to festo pipe etc if required)

Tips for draining the bubbles in the tank :
Connect the fuel pump to the top nozzle, when refueling to about 80%, twist out the bubbles in the fuel tank, and then fill the tank up. After filling up the fuel tank, wait for 1-2 minutes. The small bubbles in the tank will automatically coalesce into a large bubble,
At this time, lift the top nozzle by hand to move the bubble to the joint position, and then turn on the pump to drain the last bubble out .
