Product Details:
Features:
More pointed shape design, more beautiful, more simulation, and smaller air resistance
Not only special suitable for Sbach airplane, but also for other type airplanes
Aluminum Alloy material, CNC and Anodized processed, more durable.
Enough prop mounting mouth, playing gas airplane without worry about reaming.
Quick and easy installation: the bottom plate has drilled prop mounting holesaccording to the sizeof engines; And with mounting screw;
Hollowed design bottom plate can effectively reduce the weight.
The middle of bottom plate is antiskid design.
Fixed slot design of bottom plate makes the installation more stable.
Specifications:
Height: 114mm
Diameter of Bottom Plate: 3.25in/83mm
Aperture of Bottom Plate: 10mm
Screw: M5*85mm(thread length: 23mm)
Weight: 85g

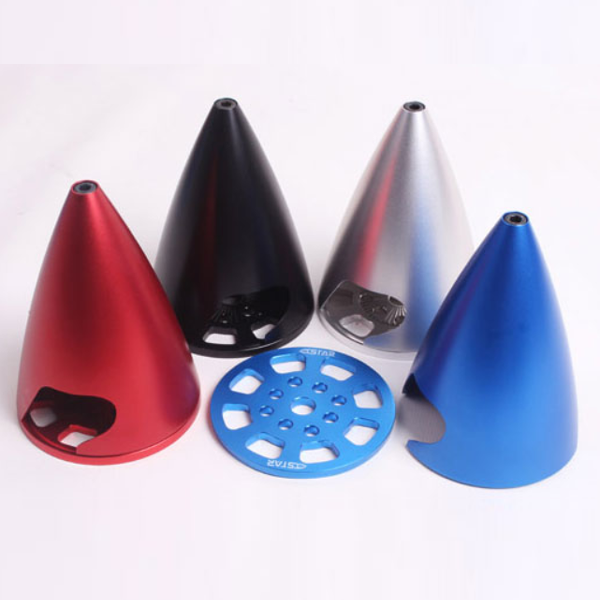

There are black, red, silver and blue colors for choice.
Application Fields:
1.Engines:
Suitable for DLE30/35RA/40/50/55/55RA/60/61, MLD35/70, EME35/55/60, DA50/60, DLA32/56/58/64, EVO54/58, 3W50/55, MVVS58, JC51 engines;
2. Propellers:
Suitable for 18*6 to 20*10 propellers (such as 3DSF18, 3DSF19, 3DSF20, SFA18, SFA19 and SFA20)
Warn Tips:
There will be aprox. 1mm tolerance for manual measurement, the following sizes are just for reference.
Note:
PLEASE SPECIFY COLOUR AT CHECKOUT OR RANDOM COLOUR WILL BE SHIPPED
Available colours:
BLACK x 2
SILVER X 2
BLUE X 2
RED X 2
