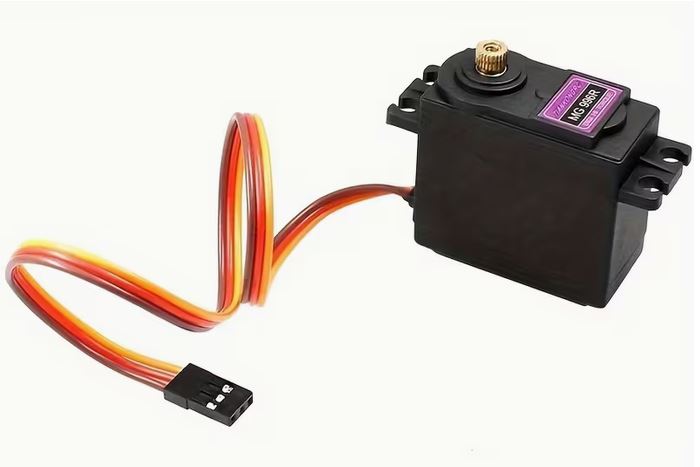

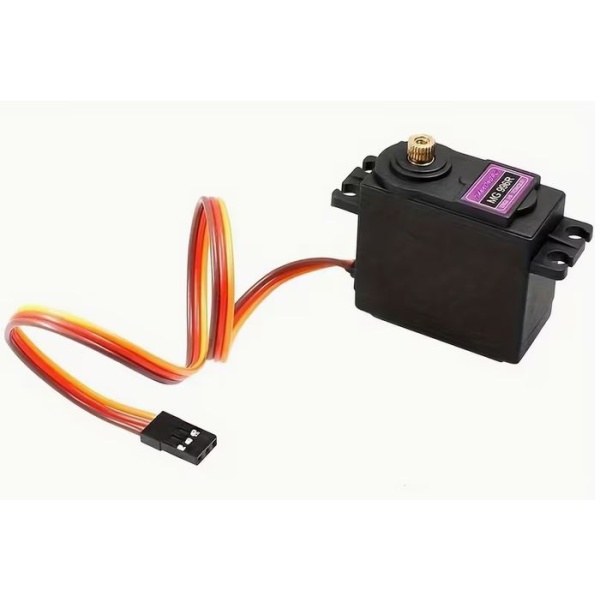

The MG996R Servo model Good performan digital standard servo, compliant with most standard receiver connector,for Futaba, Hitec, Sanwa, GWS etc. Which can be a common use for roboindividuals, mechanical arms, climbing cars and remote control toys.
Stable and sho-proof iron core motor, metal gears, power supply through external Connector.
Specifications:
Name: MG996R Digital servo
Compliant with most standard reiver connector: Futaba, Hitec, Sanwa, GWS etc
Great for tru, Boat, Racing Car, Helicopter and Airplane.
Storage Temperature Range: -30°C～80°C
Operating Temperature Range: -25°C～70°C
Gear type: 5 metal

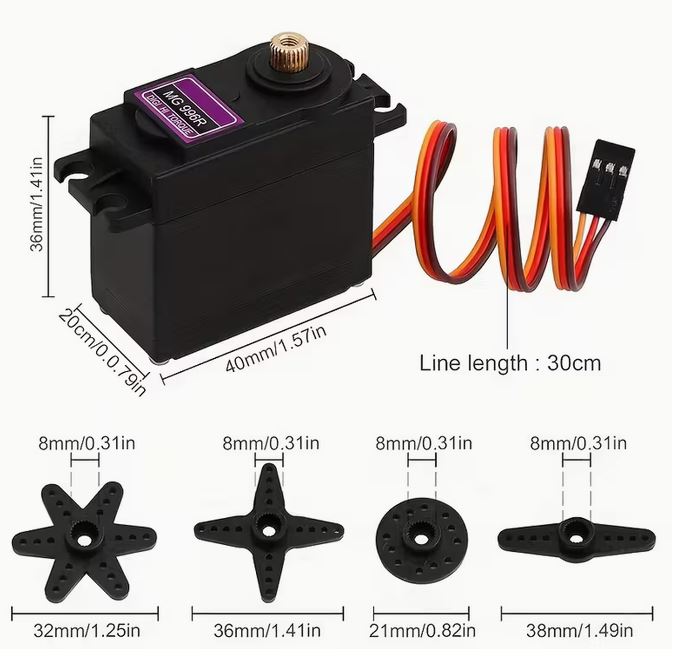

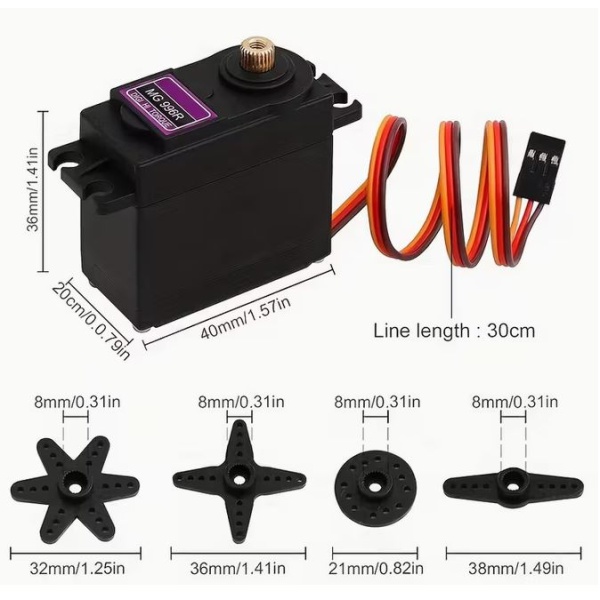

Dimension: 40.5mm*20mm*39.5mm
Operat voltage: 4.8V-7.2V
No load speed: 0.17sec/60° 0.15sec/60°
Runnig current: 160mA 170mA
Peak stall torque: 13.5kg.cm 15.2kg.cm
Stall current: 1800mA±10% 2200mA±10%
Command signal Pulse width modification
Amplifier type: Digital controller
Pulse width range: 500～2500usec
Neutral position: 1500usec
