DS-H015A Low Profile MG 6-7.4V 16kg/ 0.12sec

Features: High performance digital standard Low noise and long service life Small volume and large torque Suit for RC car boat helicopter model Specifications:

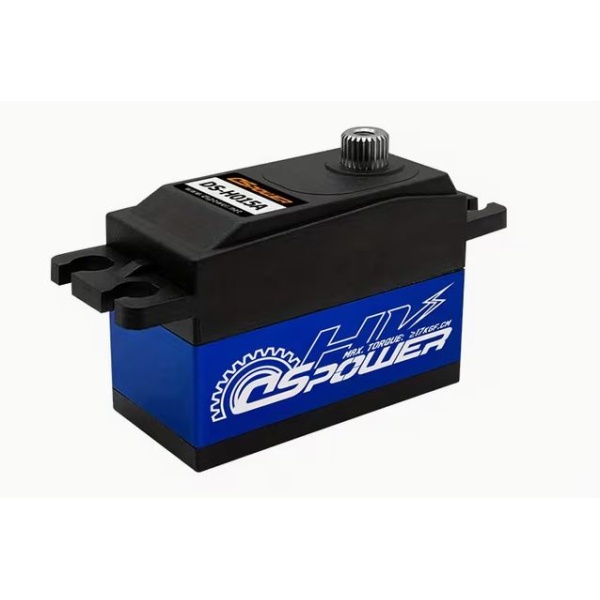

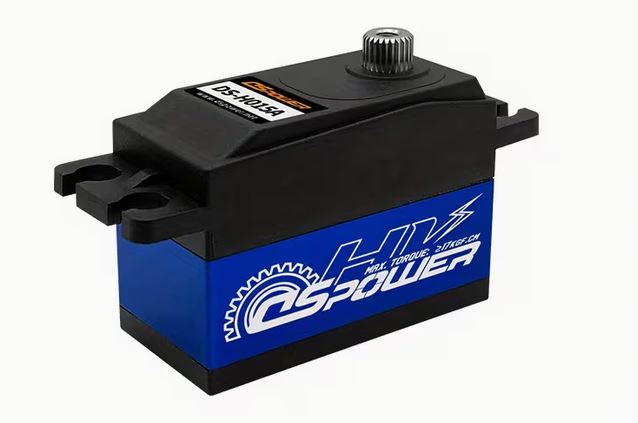

DSpower DS-H015A
Voltage: 6.0~7.4V DC Maximum Torque: 6.0V≥13.0kgf·cm; 7.4V≥16.0kgf·cm
No Load Speed: 6.0V ≤ 0.16 seconds/60°; 7.4V ≤ 0.12 seconds/60°. Stall Current: 6.0V ≤ 3600mA; 7.4V ≤ 4200mA.
Consumption Current* (No Load): 6.0V ≤ 90mA; 7.4V ≤ 100mA.
Maximum Operating Travel Angle: 180° ± 1°/300° ± 1° (500~2500 us).
Remote Control Angle: 90° ± 1° (500~2500 us)
Dead Band Width: ≤ 1us
Mechanical Limit Angle: 360°
Communication Interface: PWM
Motor Type: Core motor
Case Material: ABS/Half aluminum frame

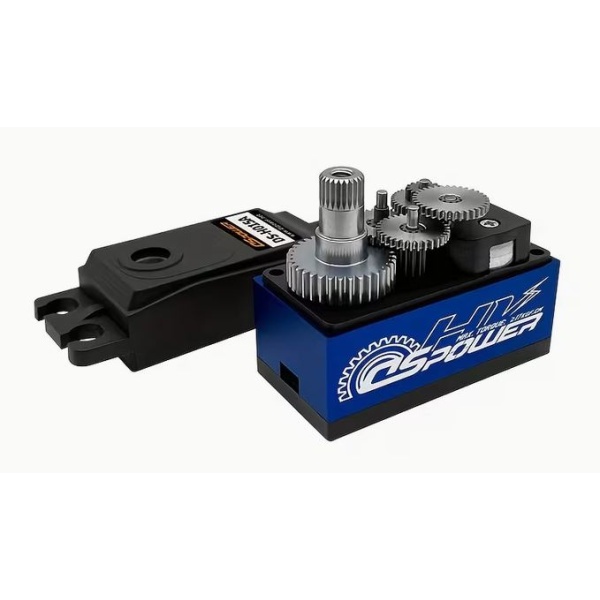

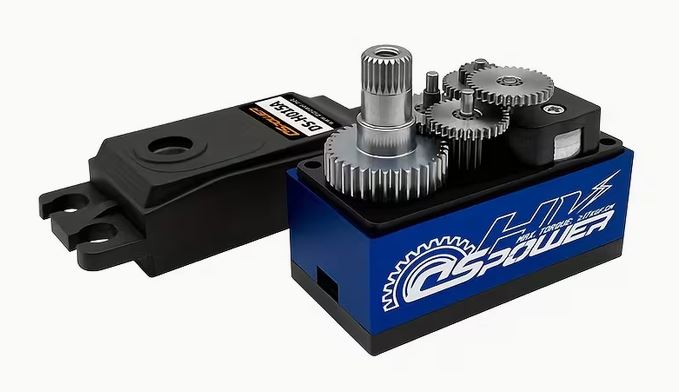

Gear Set Material: Metal gear
Horn Gear Spline: 25T/Φ5.9mm

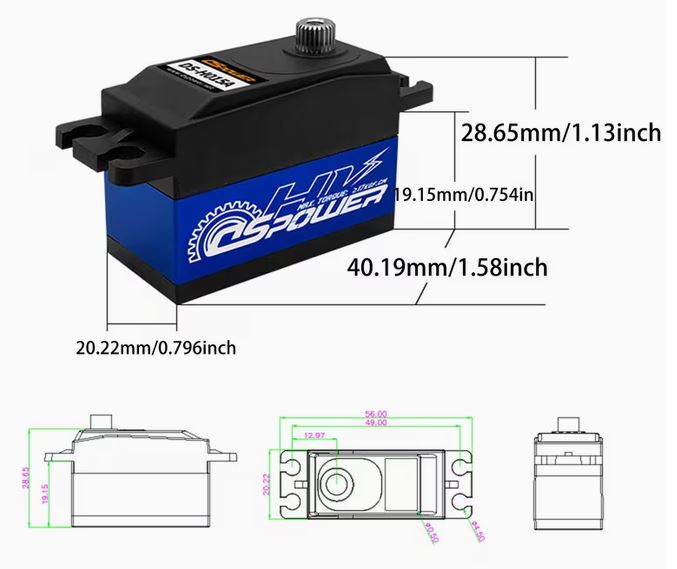

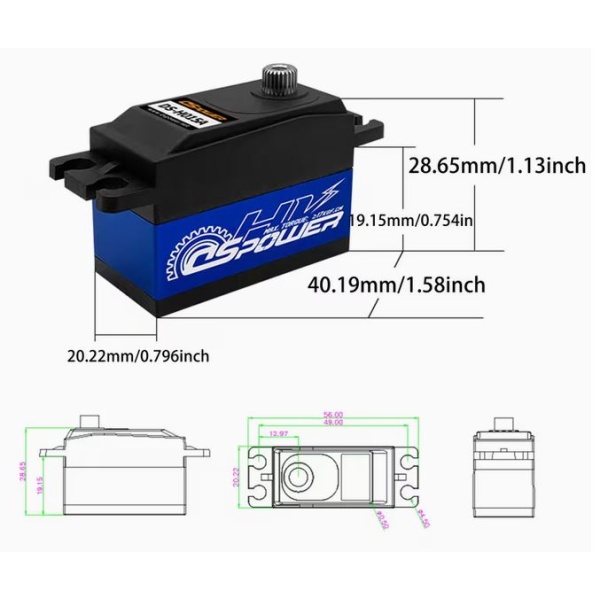

Weight: 42.5g. Size: 56 × 23.22 × 28.65mm.
Length of Connector cable: JR-2.54MM/295+5mm
